100t/h gold washing trommel

Raw materials:
gold, tungsten/walfram, cassiterite/tin, coltan/columbite, iron, oxide copper and etc
Capacity:
100t/h
Max feeding size:
50mm
Application:
gold washing machine, tungsten/walfram, cassiterite/tin, coltan/columbite, iron, oxide copper etc ore washing and processing
Shipping ports:
Shenzhen; Xiamen; Shanghai
Delivery:
5-25 days
Hot Tags:gold wash plant

Overview

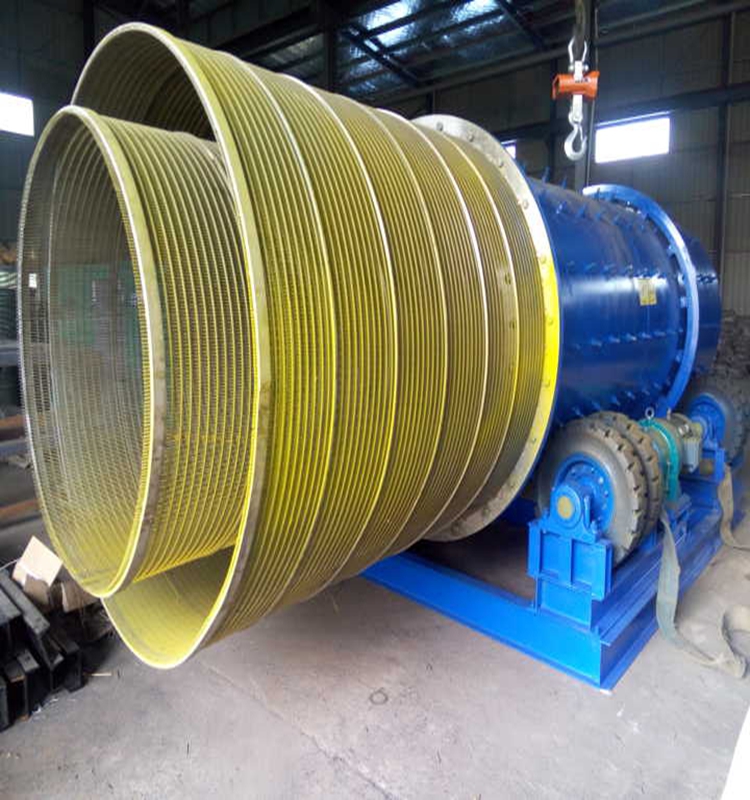

100t/h capacity gold washing trommel


1. Can be made as mobile one
2. Unique design
3. Rotatry speed is adjustable
4. Inner plate is replaceable
5. Trailer portable available




Product Description



Instroduction of placer gold washing trommel:

The slurry material feeds into rotary mining scrubber where it is vigorously scrubbed, the soil matrix is broken up and the target mineral is released.

The material is then screened through the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading.




Features of placer gold washing trommel:
  • Designed to break up alluvial gravels, clays and sand
  • High capacity and high power scrubbing
  • The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
  • One high output electrical motor driving a gear system providing efficient torque
  • Adjustable rotary speed
  • The water with high pressure flushed the inwall of drum
  • Can accept material up to 230mm
  • Mechanical sealing of inlet chute – minimal spillage when over feeding
  • Drive loads absorbed within the drive frame and pivoting drive frame design – Foundations only have to support vertical load and are not critical for alignment ie minimal cost
  • Shell design less mass than conventional roller supported units – installation craneage requirement reduced









Descriptions of placer gold washing trommel:

The placer gold washing trommel is an autogenous rotating drum scrubber, utilising pebbles and rocks within the feed source to fracture and disintegrate clays, agglomerates and soft oxides. Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end. Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels.


The placer gold washing trommel spins slowly, similar to a giant washing machine. It churns the fines and oversize and water together, vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist’s and rock.
After the fine (soil) is separated, the material is moved into the screen. The rotating screen separates the oversize material from the fines (the fines are usually termed or categorized into less than 8mm). Most of the freely (gravity) recoverable gold and or other recoverable mineral is contained in the – 8mm fines.
This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.

Specifications

Model Screen size   (mm) Rotation  speed (r/min) Feeding size  (mm) Angle of inclination (°) Capacity  (T/h) Power (Kw)
400 ≤20 27.9 ≤80 ≤10 10 3
600 ≤25 27.6 ≤80 ≤10 20 5
750 ≤25 27.6 ≤100 ≤10 30 7.5
900 ≤25 27.6 ≤100 ≤10 40 11
1200 ≤25 17 ≤160 ≤10 50-70 15
1500 ≤50 16 ≤230 ≤10 70-100 30
1800 ≤50 16 ≤230 ≤10 120-150 37
2100 ≤50 16 ≤230 ≤10 150-180 45
2400 ≤50 16 ≤230 ≤10 180-250 66
2700 ≤50 16 ≤230 ≤10 250-300 88
3000 ≤50 16 ≤230 ≤10 300-400 150
